Hi friends in this video I will show you how to make #Covid-19 corona
live outbreak data in your country.
Hardware | |||
---|---|---|---|
1 | NodeMcu | ||
1 | breaboard | ||
1 | jumper cables | ||
1 | LCD display |
Hi friends in this video I will show you how to make #Covid-19 corona live outbreak data in your country

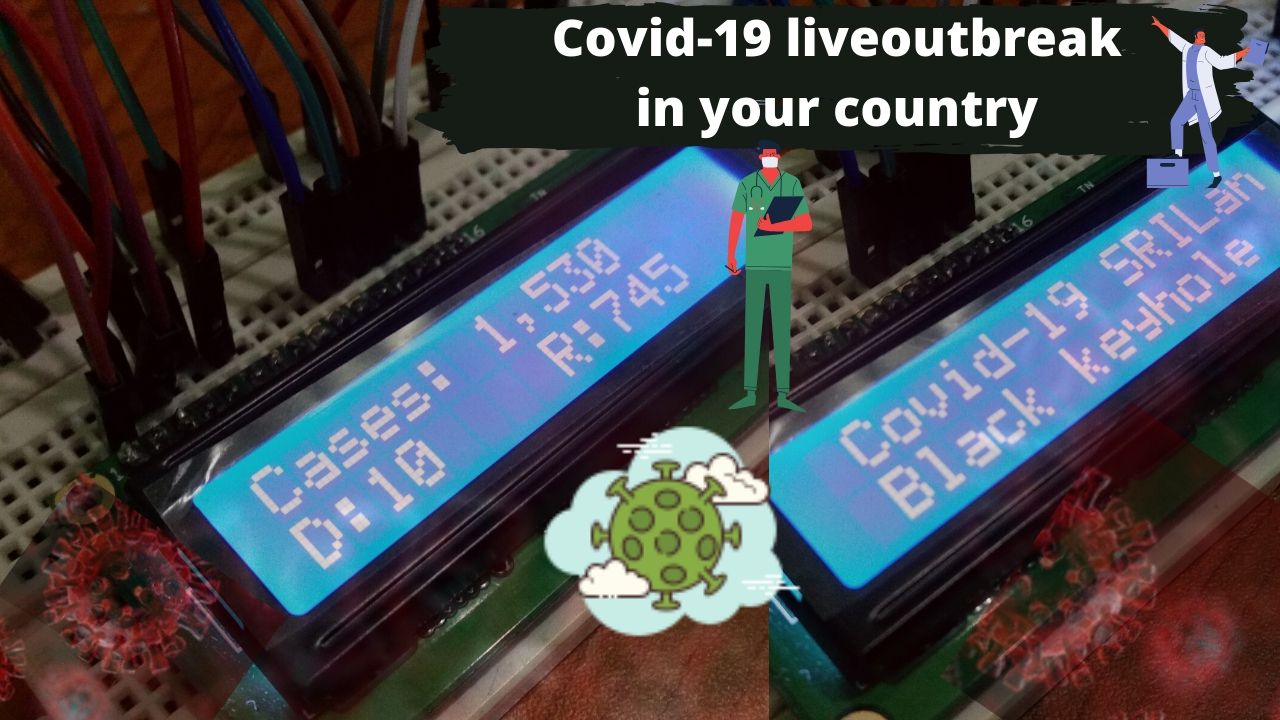

Hello everyone. This project uses nodemcu to track the virus outbreak in your country or world. You can get the result in LCD display. This project is used to get the virus outbreak data, from thingSpeak and worldometers.
for more info visit here
/* fore more projects visit www.blackkeyhole.com
* Corona Virus Tracker 16X2 LCD Display
* Corona Data: https://www.worldometers.info/coronavirus/
* ThingSpeak: https://thingspeak.com/
*/
#include <ESP8266WiFi.h> //Use ESP8266 functions
#include <ESP8266HTTPClient.h>
#include <LiquidCrystal.h>
#include <Wire.h> // Only needed for Arduino 1.6.5 and earlier
LiquidCrystal lcd(D0, D1, D2, D3, D4, D5);
const char* ssid = "......"; //WIFI SSID Name
const char* password = "......"; //WIFI Password
const char* host = "api.thingspeak.com"; //We read the data from this host
const int httpPortRead = 80;
const char* url1 = "/apps/thinghttp/send_request?api_key=VM3BGDI36EX7PZ63"; //Change this URL Cases
const char* url2 = "/apps/thinghttp/send_request?api_key=BPO9H7NAGPK0NERU"; //Deaths
const char* url3 = "/apps/thinghttp/send_request?api_key=DNKT02RV5X5WAJYF"; //Recovered
int To_remove; //There are some irrelevant data on the string and here's how I keep the index
//of those characters
String Cases,Deaths,Recovered,Data_Raw,Data_Raw_1,Data_Raw_2,Data_Raw_3; //Here I keep the numbers that I got
WiFiClient client; //Create a WiFi client and http client
HTTPClient http;
void setup() {
lcd.begin(16, 2);
lcd.setCursor(1, 0);
lcd.print("Covid-19 SRILanka"); //Change Your Country Name
lcd.setCursor(1, 1);
lcd.print("Black keyhole"); //Change Name if you want
Serial.begin(115200);
WiFi.disconnect(); //Disconnect and reconnect to the Wifi you set
delay(1000);
WiFi.begin(ssid, password);
Serial.println("Connected to the WiFi network"); //Display feedback on the serial monitor
Serial.println(WiFi.localIP());
}
void loop() {
//Reading 1: Reading of cases
if( http.begin(host,httpPortRead,url1)) //Connect to the host and the url
{
int httpCode = http.GET(); //Check feedback if there's a response
if (httpCode > 0)
{
if (httpCode == HTTP_CODE_OK || httpCode == HTTP_CODE_MOVED_PERMANENTLY)
{
Data_Raw = http.getString(); //Here we store the raw data string
Data_Raw_1 = Data_Raw;
To_remove = Data_Raw_1.indexOf(">"); //I look for the position of this symbol ">"
Data_Raw_1.remove(0,To_remove+1); //I remove it and everything that's before
To_remove = Data_Raw_1.indexOf("<"); //I look for the position of this symbol ">"
Data_Raw_1.remove(To_remove,Data_Raw_1.length()); //I remove it and everything that's after
//Example: This is the raw data received <td style="font-weight: bold; text-align:right">63,927</td>
//First we look for ">" and we remove everything before it including it
//We stay with this 63,927</td>
//We look for "<" symbol and we remove it + everything after
//We keep only this 63,927 as string
Cases=Data_Raw_1;
Serial.print("Cases: "); //I choosed to display it on the serial monitor to help you debug
Serial.println(Cases);
Data_Raw_2=Data_Raw;
To_remove = Data_Raw_2.indexOf("<span>");
Data_Raw_2.remove(0,To_remove+6);
Data_Raw_3=Data_Raw_2;
To_remove = Data_Raw_2.indexOf("</span>");
Data_Raw_2.remove(To_remove,Data_Raw_2.length());
Deaths=Data_Raw_2;
Serial.print("Deaths: ");
Serial.println(Deaths);
To_remove = Data_Raw_3.indexOf("<span>");
Data_Raw_3.remove(0,To_remove+6);
To_remove = Data_Raw_3.indexOf("<");
Data_Raw_3.remove(To_remove,Data_Raw_3.length());
Recovered=Data_Raw_3;
Serial.print("Recovered: ");
Serial.println(Recovered);
}
}
else //If we can't get data
{
Serial.printf("[HTTP] GET... failed, error: %s\n", http.errorToString(httpCode).c_str());
}
http.end();
}
else //If we can't connect to the HTTP
{
Serial.printf("[HTTP} Unable to connect\n");
}
while (WiFi.status() != WL_CONNECTED) //In case the Wifi connexion is lost
{
WiFi.disconnect();
delay(1000);
WiFi.begin(ssid, password);
Serial.println("Reconnecting to WiFi..");
delay(10000);
}
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Cases:");
lcd.setCursor(7, 0);
lcd.print(Cases);
lcd.setCursor(0, 1);
lcd.print("D:");
lcd.setCursor(2, 1);
lcd.print(Deaths);
lcd.setCursor(8, 1);
lcd.print("R:");
lcd.setCursor(10, 1);
lcd.print(Recovered);
}
