Introduction

Coin cell batteries are commonly used in small electronic devices because of their compact size, stable voltage output, and long shelf life.

Among lithium coin cell batteries, CR2025 and CR2032 are two popular choices. Although they share the same 3V operating voltage and similar dimensions, their differences can affect device performance, battery life, and mechanical design.

Understanding these differences helps engineers and makers select the right battery for their projects.

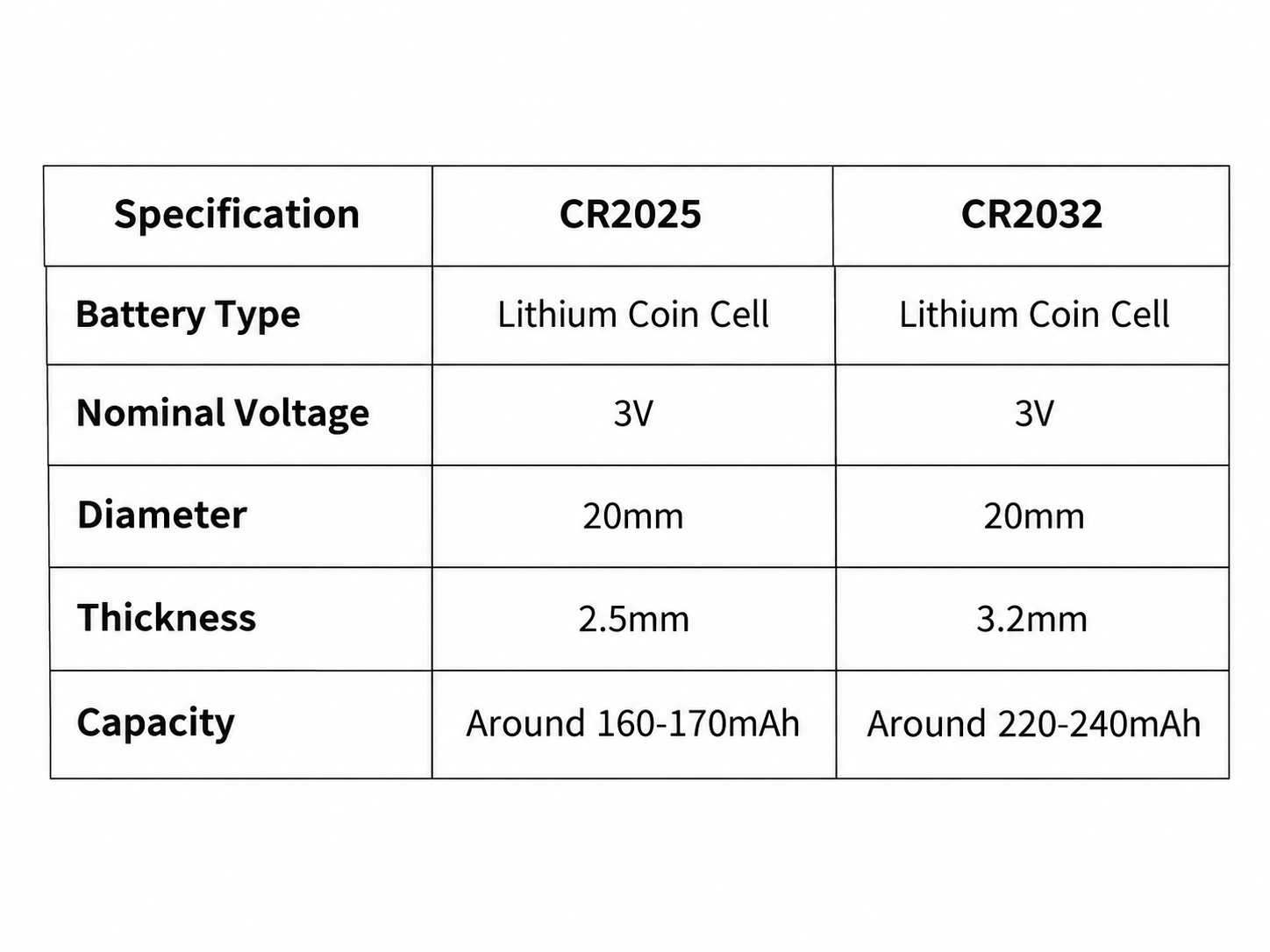

CR2025 vs CR2032 Specifications

The main difference is thickness and capacity. CR2032 provides higher capacity because it contains more active material, while CR2025 offers a thinner profile for space-limited designs.

Key Differences for Hardware Design

1. Physical Size

Both batteries have the same diameter, but the thickness difference matters when designing compact devices.

CR2025 may be preferred for:

• Thin remote controls
• Slim sensors
• Small wearable devices

CR2032 may be preferred for:

• Development boards
• IoT devices
• Wireless sensors requiring longer operation time

2. Battery Life

Because CR2032 has a higher capacity, it generally supports longer operation time under similar conditions.

For low-power applications such as:

• BLE devices
• Real-time clocks
• Temperature sensors

a higher-capacity battery can reduce replacement frequency.

3. Current Requirements

Battery selection should also consider the device's current demand.

CR2032 is often selected when:

• Longer battery life is important
• The device has higher power requirements
• Replacement access is difficult

CR2025 can be suitable when:

• Space is limited
• The power requirement is relatively low

Can CR2025 Replace CR2032?

In some devices, CR2025 can physically fit in a CR2032 battery holder because they share the same diameter.

However, the thinner battery may have:

• Lower capacity
• Shorter operating time
• Less reliable contact in some holders

Always check the device specifications before replacement.

Choosing the Right Battery for Your Project

When selecting between CR2025 and CR2032, consider:

Choose CR2025 if:

• Your design requires a thinner battery
• The device has limited power consumption
• Space is the main constraint

Choose CR2032 if:

• Longer battery life is required
• The device is difficult to access for battery replacement
• Higher capacity is preferred

Conclusion

CR2025 and CR2032 are both reliable lithium coin cell batteries for compact electronic applications. The best choice depends on the balance between size, capacity, and power requirements.

For engineers and makers designing IoT devices, sensors, and portable electronics, understanding these differences can help create more efficient and reliable products.
