MACOM’s MAAM-011238 Wideband Amplifier for 5G Applications

October 04, 2019 by Luke James

MACOM's MAAM-011238 is an easy-to-use wideband single amplifier for 5G applications that span sub-6 GHz to mmW frequencies.

Announced by MACOM in June, The MAAM-011238-DIE is an easy-to-use wideband amplifier that operates from 100 kHz all the way to 50 GHz (or 67.5GHz for the Bare-DIE version). The wideband amplifier is suited for 5G test and measurement equipment scaling to mmW frequencies with positive gate bias eliminating the need for negative voltage.

MACOM's wideband distributed amplifier is available in both surface mount and Bare-DIE packaged formats. It provides systems designers and engineers the ability to use a single amplifier for 5G applications that require sub-6 GHz to mmW frequencies.


The MAAM-011238 Wideband Amplifier by MACOM

Supporting wideband operation from 100kHz up to 50GHz (67.5 GHz for Bare-DIE), the amplifier has a typical gain of 14 dB at the 30 GHz mark. Its input and output are matched at 50 Ω with an average return loss of only 10 dB. Positive gate bias enhances ease of use by removing the need for negative voltage supply, and an integrated power detector simplifies design easier deployment and preservation of board space.

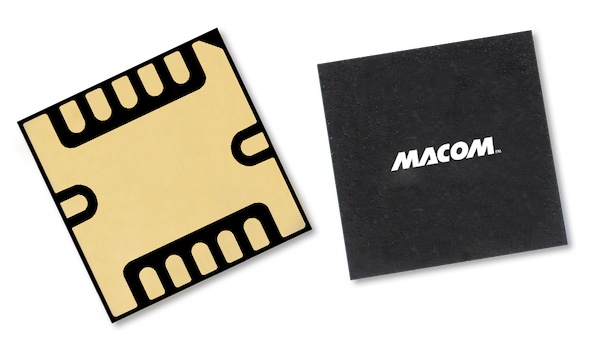

The MACOM Wideband Amplifier

The MACOM Wideband Amplifier. Image Credit: MACOM.


Designed to be an effective broadband amplifier solution for 5G sub-6 GHz to mmW testing, the MAAM-011238 and MAAM-011238-DIE has low distortion and linear operation can cover the entire frequency of a wideband operation without the need for any external circuitry.

The high-power nature of the wideband amplifier makes it ideal for use as a driver or output device.


Quick Reference Data

  MAAM-011238 MAAM-011238-DIE
     Frequency 100 kHz - 50 GHz 100 kHz - 67.5 GHz
     Gain 14 dB 15 dB
     P1dB 17 dBm 18 dBm
     P3dB 18.5 dBm 20 dBm
     OIP3 26 dBm 26 dBm
     NF 6 dB 5.5 dB
     Bias Voltage 4 - 6 V 4 - 6 V
     Bias Current 125 - 150 mA 125 - 150 mA
     Package 5mm 12-Lead SMT 12.1mm x 1.05mm



MACOM is a designer and manufacturer of semiconductor products for several applications, including data centers, telecoms, industrial, and defense. The company is headquartered in Lowell, Massachusetts and it has design centers located throughout North America, Europe, and Asia.
