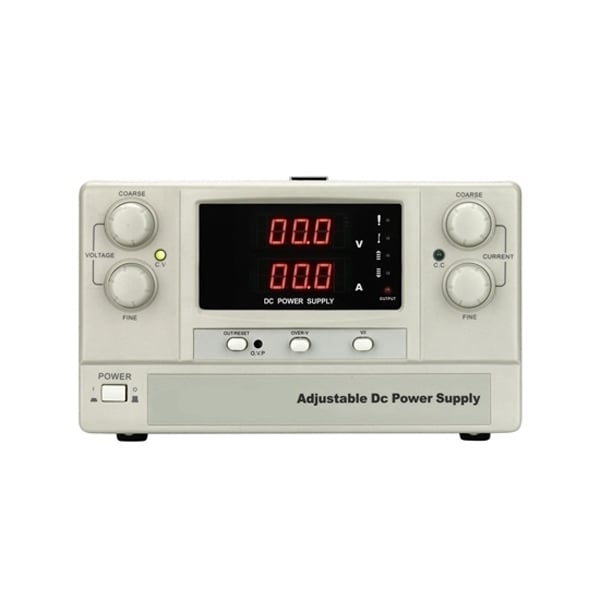

A variable DC power supply is an electronic device capable of outputting adjustable DC voltage and current. Its core function is to provide stable and adjustable DC power to various electronic circuits, devices, or experiments. Unlike fixed-output power supplies, variable DC power supplies allow users to manually set the output voltage and current values according to actual needs. This flexibility makes it an indispensable tool in electronics laboratories, R&D centers, repair shops, and educational institutions.
The most common function of a variable DC power supply is voltage regulation. Users can continuously change the output voltage within the power supply's rated range using knobs or digital keys. For example, setting any value between 0 volts and 30 volts. This allows engineers or technicians to provide the precise operating voltage required for different circuits, such as 3.3 volts for a microcontroller, ±15 volts for an operational amplifier, or 12 volts for a motor drive circuit. The accuracy and stability of voltage regulation directly affect the operating state of the circuit under test. High-precision variable DC power supplies typically employ linear regulation designs, controlling output voltage ripple to extremely low levels, thereby avoiding noise interference with sensitive circuits. In digitally controlled power supplies, voltage settings can be achieved via a microprocessor, with resolution down to the millivolt level.
Another important function of variable DC power supplies is current limiting. Variable DC power supplies typically feature a constant current (CC) mode. When the output current reaches the user-defined upper limit, the power supply automatically switches from constant voltage mode to constant current mode, clamping the output current to the set value while simultaneously reducing the output voltage. This function protects the circuit under test from overcurrent damage and is commonly used to power devices such as LEDs and batteries that require a constant current supply. Users can preset a safe current value, ensuring that the power supply will not output current exceeding the set value even if the load is short-circuited. In battery charging applications, constant current mode allows the power supply to pre-charge the battery with a constant current until the battery voltage reaches the set value, then automatically switches to constant voltage mode to complete the entire charging process.
Furthermore, many variable DC power supplies offer overvoltage protection, overtemperature protection, and remote control functions. Overvoltage protection automatically cuts off the output when the output voltage unexpectedly exceeds a safe threshold, preventing damage to expensive equipment. Overtemperature protection reduces output or shuts down the power supply when the internal temperature is too high, ensuring equipment safety. Remote control interfaces (such as USB, RS232, or GPIB) allow for programmed control of voltage and current via computer or automated systems, suitable for automated testing and R&D scenarios. Some high-end models also feature data logging capabilities, continuously monitoring and recording output voltage and current variation curves to facilitate analysis of circuit behavior under different power supply conditions.
In laboratory environments, variable DC power supplies are fundamental tools for electronic testing and troubleshooting. Technicians can use them to simulate circuit behavior under different voltages, verify circuit stability during power supply fluctuations, or provide alternative power to equipment under repair. During the R&D phase, variable DC power supplies allow engineers to quickly adjust power supply parameters and optimize circuit design. In production and maintenance, variable DC power supplies are used to provide standardized DC power to products under test, ensuring consistent testing conditions.
