FRDM-MCXx Educational Hat

July 04, 2024 by Emiel V

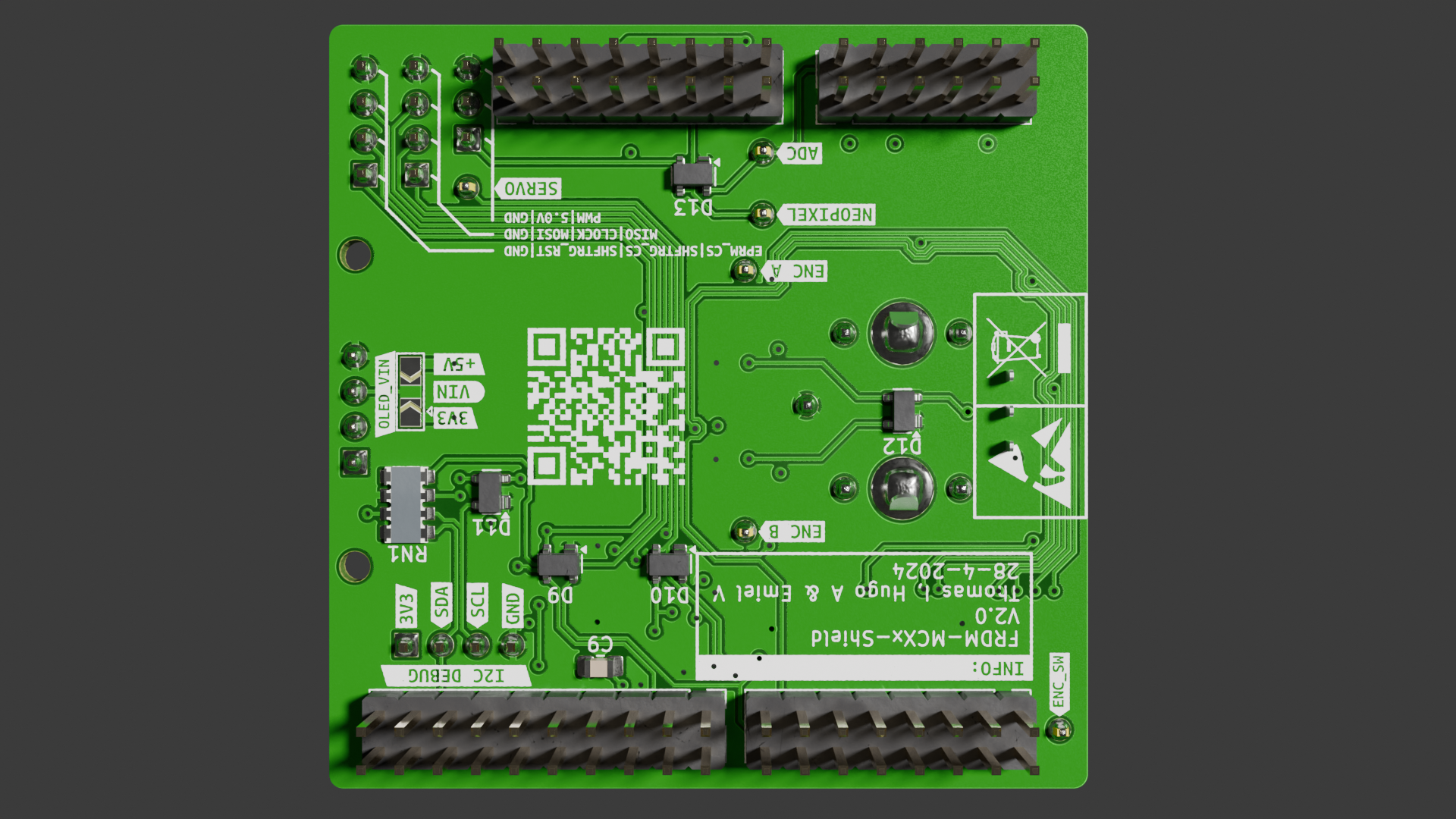

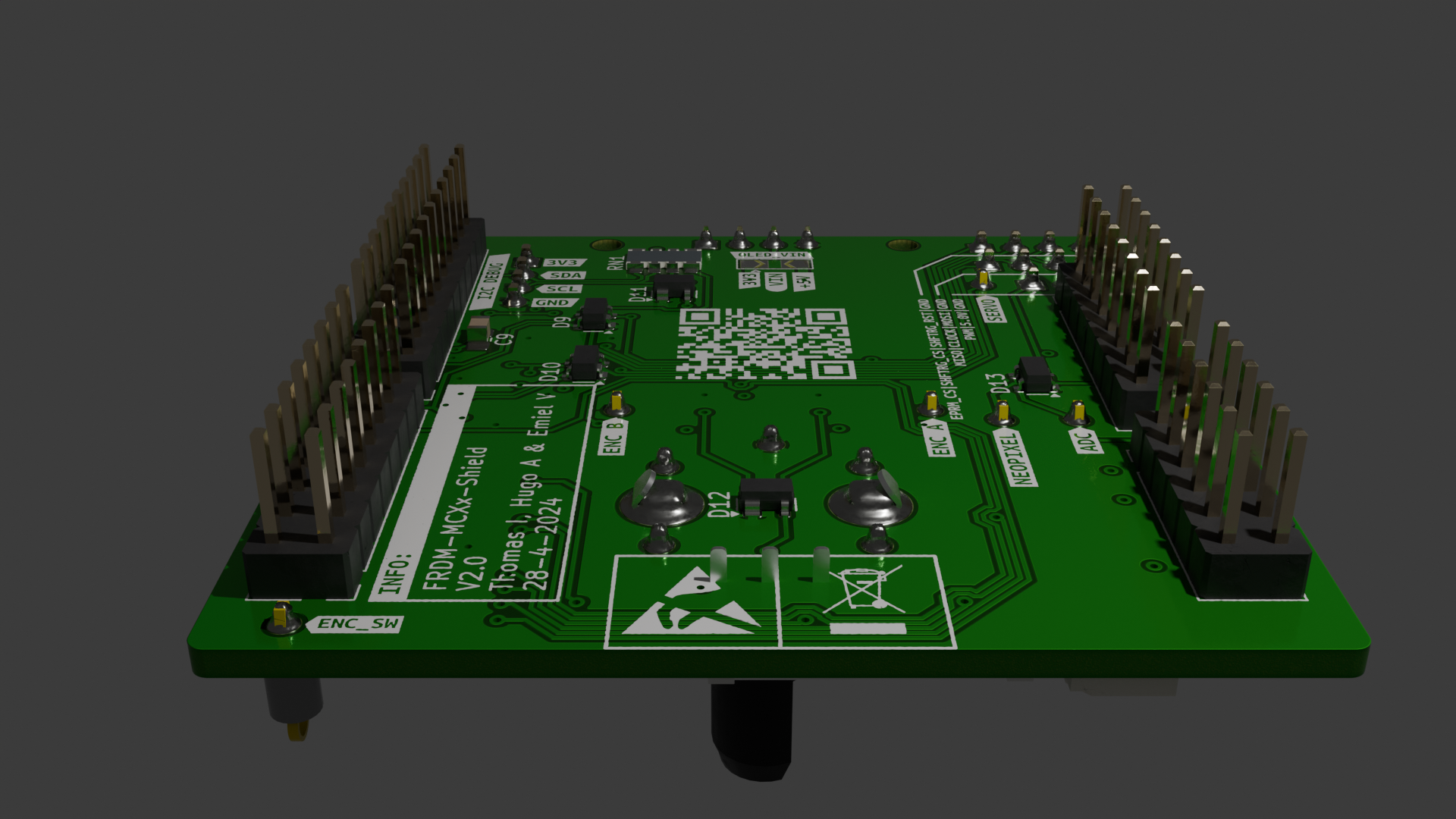

A hat with sensors and actuators for the FRDM-MCXA153 and FRDM-MCXN947 development boards made by NXP.

Project
Resources

When the MCX series microcontrollers were released at the beginning of this year my teacher asked us to come up with a design for a hat that can be used during the microcontroller lessons at school.

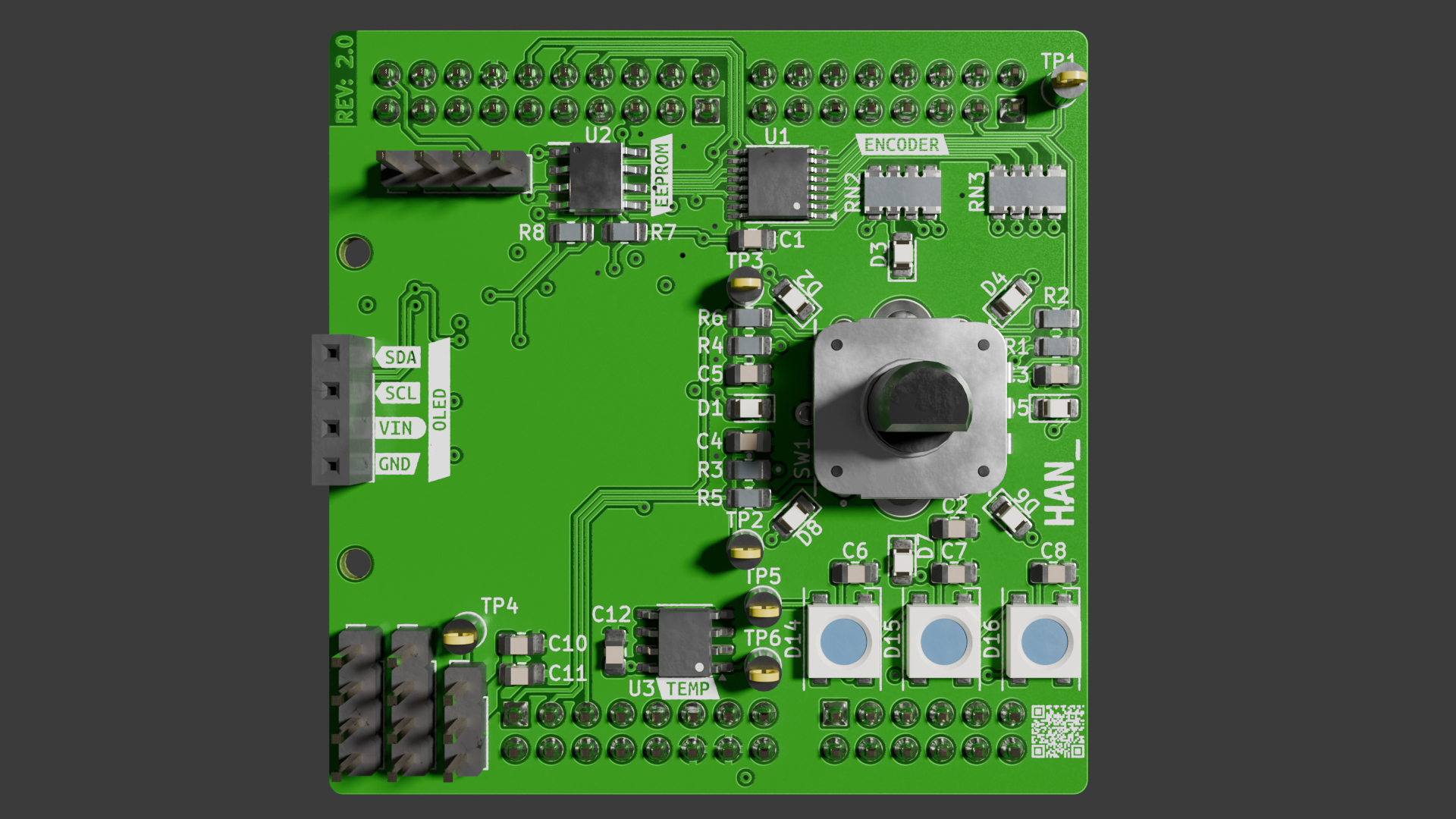

Features:

- 64x128 OLED display.

- EEPROM with SPI interface.

- Encoder with push button.

- Shift register for controlling the led ring around the encoder.

- Neopixels.

- LM35 analogue temperature sensor.

- Servo header.

- I2C breakout header.

- Various test points and oscilloscope clips for easy debugging.
