This is where professional PCB Stencil Services become essential. A high-quality PCB stencil ensures that the right amount of solder paste is deposited on every pad with exceptional precision. From prototype production to high-volume manufacturing, an accurately manufactured stencil helps improve solder joint consistency, increases first-pass yield, and reduces manufacturing defects.

As electronic products continue to become smaller and more complex, precision stencil design has become more important than ever. Fine-pitch ICs, BGAs, QFNs, and miniature passive components require highly accurate solder paste printing to maintain reliable electrical connections. Investing in professional PCB Stencil Services helps manufacturers achieve better assembly quality while reducing production costs.

Why PCB Stencil Services Are Important

Modern electronics manufacturing demands precision at every stage of PCB assembly. While PCB fabrication and component placement often receive significant attention, stencil manufacturing is equally important because it directly controls solder paste deposition.

Professional PCB Stencil Services help manufacturers achieve consistent printing performance by producing precision laser-cut stencils with optimized aperture designs. These stencils ensure that every PCB pad receives the correct amount of solder paste, minimizing printing variations and improving overall assembly quality.

Some of the major benefits of quality PCB Stencil Services include:

• Accurate solder paste deposition
• Higher SMT assembly quality
• Reduced soldering defects
• Improved first-pass production yield
• Better component alignment
• Lower manufacturing costs
• Reduced rework and repair
• Consistent production quality

By using precision-engineered stencils, manufacturers can improve the reliability of electronic products while maintaining stable production processes.

What Is a PCB Stencil?

A PCB stencil is a thin sheet of stainless steel containing precision-cut openings known as apertures. During the solder paste printing process, the stencil is positioned over the PCB, and a squeegee spreads solder paste across its surface. The solder paste passes through the apertures and is deposited directly onto the PCB pads.

Although the process appears simple, the stencil plays a vital role in determining the quality of every solder joint. The size, shape, and finish of each aperture control how much solder paste is transferred to the PCB during printing.

Professional PCB Stencil Services manufacture these stencils using advanced laser-cutting technology to achieve extremely high dimensional accuracy. Many manufacturers also provide electropolished or nano-coated stencils that improve solder paste release and extend stencil life.

Understanding PCB Stencil Apertures

Stencil apertures are precision-cut openings that determine how much solder paste reaches each PCB pad. Every aperture must release nearly all of the solder paste during printing while maintaining consistent deposit volumes throughout thousands of production cycles.

If solder paste remains inside the aperture instead of transferring to the PCB, several manufacturing issues may occur, including weak solder joints, poor electrical connections, and inconsistent component placement.

Several factors influence aperture performance, including:

• Aperture shape
• Aperture size
• Stencil thickness
• Surface finish
• Area ratio
• Aspect ratio

Each of these factors works together to ensure consistent solder paste transfer during PCB assembly.

Why Solder Paste Release Matters

The primary objective of stencil printing is to deposit the correct amount of solder paste onto every PCB pad. Even slight variations in solder paste volume can significantly affect assembly quality.

Insufficient solder paste may produce weak electrical connections, while excessive solder paste can create solder bridges between adjacent pads. Both situations increase manufacturing defects and reduce product reliability.

Reliable PCB Stencil Services help manufacturers achieve consistent solder paste release, resulting in numerous production advantages, including:

• Uniform solder joint formation
• Better component placement accuracy
• Improved electrical reliability
• Higher first-pass yield
• Reduced inspection failures
• Lower repair costs
• Improved long-term product performance

For today's compact electronic devices, maintaining consistent solder paste release is essential for achieving reliable PCB assembly.

How PCB Stencil Services Improve Printing Performance

High-quality PCB Stencil Services focus on much more than simply cutting holes into stainless steel sheets. Professional stencil manufacturers carefully optimize aperture geometry, stencil thickness, and surface finish to maximize solder paste transfer efficiency.

Modern PCB stencils are typically produced using laser-cut stainless steel because it provides excellent dimensional accuracy and smooth aperture walls. Additional finishing processes such as electropolishing and nano-coating further reduce friction inside the apertures, allowing solder paste to release more efficiently during printing.

These advanced manufacturing techniques help improve:

• Solder paste transfer efficiency
• Print consistency
• SMT assembly accuracy
• Production stability
• Product reliability

As PCB designs continue to shrink in size, precision stencil manufacturing has become an essential part of successful electronics production.

The Growing Importance of Precision PCB Stencil Services

Today's electronic devices contain more functionality in increasingly smaller spaces. Fine-pitch integrated circuits, Ball Grid Arrays (BGAs), Quad Flat No-Lead (QFN) packages, and miniature passive components all require highly accurate solder paste deposition.

Traditional stencil designs may no longer provide the level of precision needed for these advanced PCB layouts. Professional PCB Stencil Services use optimized aperture geometries and advanced manufacturing processes to support modern SMT assembly requirements.

Whether producing consumer electronics, industrial automation systems, medical devices, automotive electronics, or aerospace equipment, precision stencil manufacturing helps ensure consistent assembly quality while reducing production defects.

By selecting reliable PCB Stencil Services, manufacturers can improve product reliability, streamline production processes, and achieve higher manufacturing efficiency.

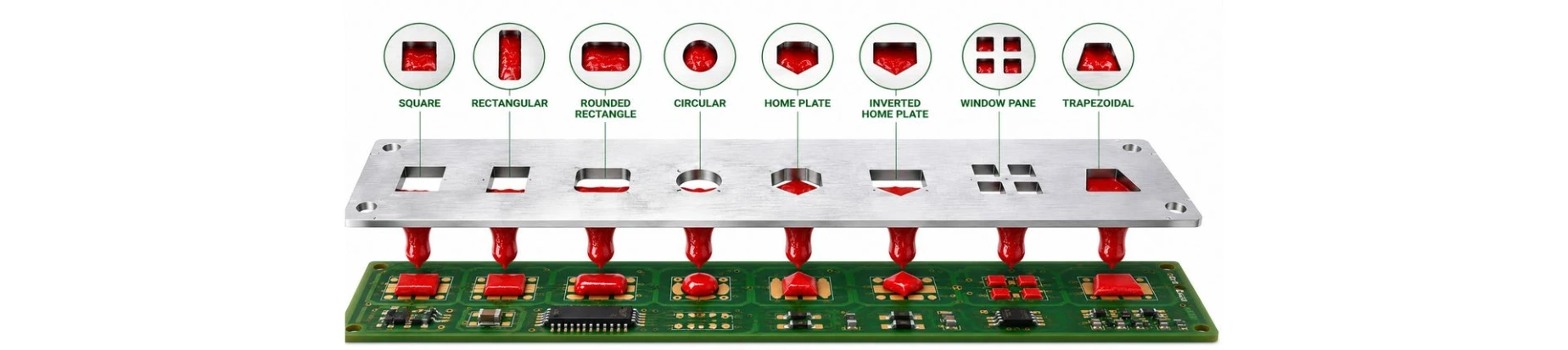

Types of PCB Stencil Apertures

One of the biggest factors affecting solder paste transfer is the shape of the stencil aperture. Different electronic components require different aperture designs to ensure the correct amount of solder paste is deposited on the PCB pads. Professional PCB Stencil Services carefully select and optimize aperture geometries based on component size, package type, and PCB layout to improve printing accuracy.

1. Square Apertures

Square apertures are among the most commonly used designs in SMT manufacturing. They are suitable for standard chip components and larger PCB pads where solder paste transfer is relatively straightforward.

Best Applications

• Standard SMT components
• Passive devices
• General PCB assembly
• Larger PCB pads

These apertures provide consistent solder paste deposits and support stable production for conventional PCB designs.

2. Rectangular Apertures

Rectangular apertures are widely used for integrated circuits and connector pads because they closely match elongated PCB land patterns.

They provide excellent solder paste distribution while maintaining reliable transfer efficiency.

Common Applications

• SOIC packages
• QFP components
• Connector terminals
• Elongated SMT pads

Professional PCB Stencil Services frequently use rectangular apertures to ensure balanced solder paste volume across larger component leads.

3. Rounded Rectangle Apertures

Rounded rectangle apertures improve solder paste release by eliminating sharp internal corners where solder paste may become trapped.

These aperture designs reduce friction inside the stencil and produce more consistent solder paste deposits.

They are commonly used for:

• Fine-pitch ICs
• High-density PCB designs
• Precision SMT manufacturing
• Advanced electronic assemblies

4. Circular Apertures

Circular apertures are generally used for specialized SMT applications and certain through-hole printing requirements.

Although they are less common in modern fine-pitch PCB manufacturing, they remain useful for applications requiring symmetrical solder paste deposits.

5. Home Plate Apertures

Home plate apertures are specially designed to reduce solder paste volume near one end of the PCB pad.

This helps control solder flow during reflow soldering and minimizes defects such as tombstoning, especially for small passive components.

These apertures are frequently recommended by experienced PCB Stencil Services providers for miniature chip components.

6. Inverted Home Plate Apertures

Unlike traditional home plate designs, inverted home plate apertures increase solder volume near specific sections of a component while maintaining controlled paste release.

They are used for specialized PCB assembly applications that require customized solder distribution.

7. Window Pane Apertures

Large thermal pads found beneath QFN packages and power devices often require window pane aperture designs.

Instead of using one large opening, the aperture is divided into multiple smaller sections.

This design offers several advantages:

• Reduces solder voids
• Improves heat dissipation
• Creates more uniform solder joints
• Improves thermal performance
• Reduces excessive solder volume

Professional PCB Stencil Services commonly recommend this design for thermal pads and high-power electronic devices.

8. Trapezoidal Apertures

Trapezoidal apertures feature tapered walls that allow solder paste to release more easily from the stencil.

They are especially useful for ultra-fine-pitch PCB designs where solder paste transfer efficiency becomes increasingly challenging.

Factors That Affect Solder Paste Release

Although aperture shape is extremely important, several additional factors determine how efficiently solder paste transfers from the stencil to the PCB.

Professional PCB Stencil Services evaluate all these parameters together to achieve reliable printing performance.

Stencil Thickness

Stencil thickness directly affects the amount of solder paste deposited onto each PCB pad.

A thicker stencil deposits more solder paste but may reduce transfer efficiency for fine-pitch components.

A thinner stencil improves paste release but may not provide sufficient solder for larger components.

Selecting the correct stencil thickness is one of the most important decisions during stencil design.

Area Ratio

Area Ratio compares the aperture opening with the internal wall surface area.

A higher Area Ratio generally improves solder paste release because less paste adheres to the stencil walls.

Low Area Ratios often result in:

• Poor solder paste release
• Insufficient solder deposits
• Increased printing defects
• Lower production yield

Professional PCB Stencil Services carefully evaluate Area Ratio before manufacturing a stencil.

Aspect Ratio

Aspect Ratio compares aperture width to stencil thickness.

When the aperture becomes too narrow relative to stencil thickness, solder paste may not release consistently.

Maintaining an appropriate Aspect Ratio improves print quality while reducing insufficient solder deposits.

Surface Finish

The finish applied to a stencil greatly influences paste release.

Modern PCB Stencil Services commonly offer:

• Laser-cut stencils
• Electropolished stencils
• Nano-coated stencils

Smooth aperture walls reduce friction and help solder paste transfer more efficiently.

Solder Paste Properties

Different solder pastes behave differently during printing.

Several properties influence printing performance:

• Particle size
• Viscosity
• Flux composition
• Metal content

Choosing the correct solder paste is just as important as selecting the right stencil.

Printing Parameters

Even the highest-quality stencil cannot compensate for incorrect printer settings.

Several production parameters influence solder paste transfer:

• Squeegee pressure
• Printing speed
• Separation speed
• Stencil cleaning frequency
• Environmental conditions

Optimizing these settings ensures consistent printing throughout production.

Common Printing Defects Caused by Poor Stencil Design

Improper stencil design can create several manufacturing problems that increase production costs and reduce PCB reliability.

Insufficient Solder

When too little solder paste is deposited, weak solder joints may form.

This can result in:

• Poor electrical conductivity
• Weak mechanical strength
• Early product failure

Solder Bridging

Excessive solder paste may connect adjacent pads during reflow.

This creates electrical shorts that require inspection and rework.

Tombstoning

Uneven solder paste volumes can cause one side of a small passive component to lift during soldering.

Proper aperture design significantly reduces this defect.

Solder Voids

Large thermal pads may trap gases during reflow if excessive solder paste is deposited.

Window pane aperture designs help minimize void formation.

Inconsistent Paste Volume

Variations in solder paste volume can lead to:

• Poor component placement
• Inspection failures
• Lower production yield
• Increased repair costs

Reliable PCB Stencil Services help eliminate these issues by designing stencils that provide accurate and repeatable solder paste deposition.

Best Practices for PCB Stencil Design

A well-designed stencil plays a crucial role in ensuring consistent solder paste deposition and reliable PCB assembly. Rather than using standard aperture designs for every application, manufacturers should optimize stencil specifications based on the PCB layout, component package, and assembly requirements.

Professional PCB Stencil Services follow industry best practices to improve print quality and reduce manufacturing defects.

Some recommended practices include:

• Match aperture geometry to each component package.
• Select the appropriate stencil thickness for the PCB design.
• Verify Area Ratio and Aspect Ratio before production.
• Use rounded aperture corners to improve solder paste release.
• Choose window-pane apertures for large thermal pads.
• Apply home plate designs where tombstoning is a concern.
• Perform Design for Manufacturability (DFM) reviews.
• Use high-quality stainless steel stencils with smooth surface finishes.
• Regularly clean stencils during production to maintain consistent printing performance.

Following these best practices helps manufacturers improve production efficiency while reducing assembly errors.

Benefits of Professional PCB Stencil Services

Choosing professional PCB Stencil Services offers significant advantages throughout the PCB manufacturing process. A precision-engineered stencil improves solder paste printing accuracy, minimizes defects, and supports high-quality SMT assembly.

Some of the major benefits include:

Improved Solder Paste Accuracy

Precision laser-cut apertures ensure that the correct amount of solder paste is deposited on every PCB pad, creating stronger and more reliable solder joints.

Higher First-Pass Yield

Accurate stencil design reduces printing defects, allowing more PCB assemblies to pass inspection without requiring rework.

Better Component Alignment

Uniform solder paste deposits help SMT components self-align during the reflow process, improving placement accuracy and reducing assembly issues.

Lower Manufacturing Costs

Reducing soldering defects minimizes expensive repairs, material waste, and production downtime, resulting in lower overall manufacturing costs.

Enhanced Product Reliability

Consistent solder joints improve the electrical and mechanical performance of electronic products, ensuring long-term reliability in demanding applications.

Faster Production

Reliable PCB Stencil Services help maintain stable printing processes, allowing manufacturers to achieve higher production speeds with fewer interruptions.

Industries That Benefit from PCB Stencil Services

Precision stencil manufacturing is essential across a wide range of industries where PCB reliability and consistent solder joints are critical.

Professional PCB Stencil Services support applications including:

• Consumer Electronics
• Industrial Automation
• Automotive Electronics
• Medical Devices
• Aerospace & Defense
• Telecommunications
• Robotics
• IoT Devices
• Renewable Energy Systems
• Smart Home Electronics

Each industry has unique assembly requirements, making custom stencil design an important part of achieving reliable PCB production.

Why Choose PCB Power for PCB Stencil Services

At PCB Power, precision and quality are at the core of every stencil we manufacture. Our engineering team evaluates PCB layouts, component packages, and production requirements to recommend stencil specifications that deliver consistent solder paste deposition and reliable assembly performance.

Our PCB Stencil Services include:

• Precision Laser-Cut PCB Stencils
• Prototype and Production Stencils
• Electropolished Stencils
• Nano-Coated Stencils
• SMT Stencils for Fine-Pitch Components
• Custom Stencil Design Support
• Fast Manufacturing and Delivery

Beyond stencil manufacturing, PCB Power also provides complete electronics manufacturing solutions, including:

• PCB Fabrication
• PCB Assembly
• PCB Layout & Design
• Electronic Component Sourcing
• Engineering Support

By integrating stencil manufacturing with PCB fabrication and assembly, we help customers streamline production while maintaining exceptional product quality.

Common Mistakes to Avoid

Even with advanced SMT equipment, poor stencil selection can reduce manufacturing efficiency. Avoiding common mistakes helps maintain consistent solder paste printing and reliable PCB assembly.

Some common errors include:

• Selecting an incorrect stencil thickness
• Ignoring Area Ratio calculations
• Using identical aperture shapes for all components
• Overlooking fine-pitch component requirements
• Choosing unsuitable solder paste
• Skipping stencil cleaning during production
• Ignoring DFM recommendations
• Using low-quality stencil materials

Working with experienced PCB Stencil Services providers helps eliminate these issues before production begins.

Conclusion

Solder paste printing remains one of the most important stages in the SMT assembly process, and stencil quality directly impacts the reliability of every solder joint. From aperture geometry and stencil thickness to surface finish and printing parameters, every detail influences solder paste transfer and overall manufacturing performance.

Professional PCB Stencil Services help manufacturers achieve accurate solder paste deposition, reduce assembly defects, improve first-pass yield, and lower production costs. As PCB designs continue to evolve with finer-pitch components and higher circuit densities, investing in precision stencil manufacturing has become essential for producing high-quality electronic products.

Whether you're building prototypes or high-volume production boards, choosing reliable PCB Stencil Services ensures consistent SMT performance, enhanced product reliability, and a more efficient manufacturing process. With expert engineering support and advanced manufacturing capabilities, PCB Power delivers stencil solutions that help customers achieve superior PCB assembly quality and long-term success.

Know More: https://www.pcbpower.us/blog/general-11/stencil-aperture-shape-affects-solder-paste-44
