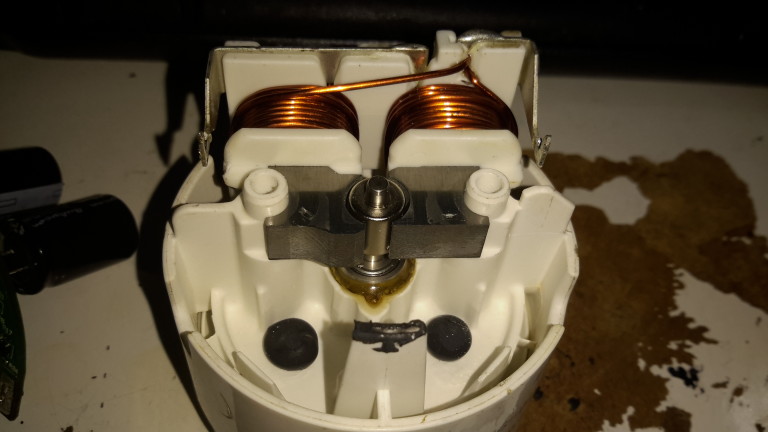

Hey guys I have a 2 coil stator/brushless motor with 2 poles (1 magnet 2 sides). Is there any way to connect it to a 3 wire 3 phase electronic speed controller?
I was thinking maybe like this image. Added a diode so phase #2 doesn't spin the motor backwards. Just not sure if the ESC will still work with phase #2 pretty much disabled. And the other problem I see is that now phase #1 will only go across 1 coil, phase #2 disabled, and phase #3 will go across both coils so the torque might be weird...?
I was thinking maybe like this image. Added a diode so phase #2 doesn't spin the motor backwards. Just not sure if the ESC will still work with phase #2 pretty much disabled. And the other problem I see is that now phase #1 will only go across 1 coil, phase #2 disabled, and phase #3 will go across both coils so the torque might be weird...?
![354d2a8b51.png](/forums/proxy.php?image=https%3A%2F%2Fi.imgsafe.org%2F354d2a8b51.png&hash=8a38231ca9c9ab911e6c6f6c0b638d55)
